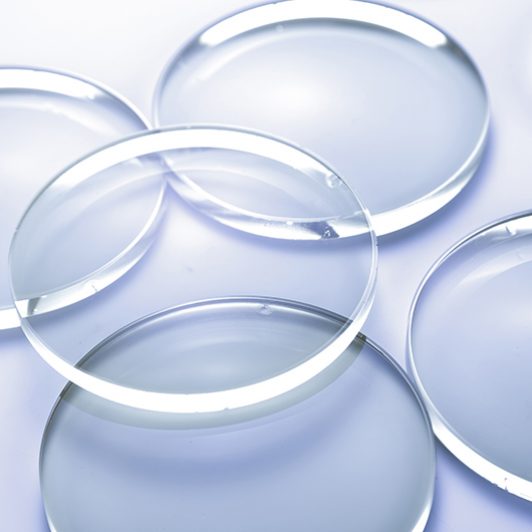

Fused Silica Discs

noe-glass-discs-1013979736-1

Newcastle Optics supply UV Fused Silica Windows and substrates, either custom made or from our standard stock. UV Fused Silica has high transparency in the UV ultraviolet 180nm to the (IR) infrared over 2.3 microns. The material is fluorescent free with high OH centred @ 2.7 microns limiting transmission to 2.20 microns limiting its IR transmission.

For IR transmission an infrared grade of quartz is available for transmission to 3 microns and an OH value of typically 10ppm. Fused Silica is resistant to chemicals and high radiation. It had a higher purity to Fused Quartz withstanding temperatures over 1000°C and resistant to thermal shocks. We supply several grades of UV Fused Silica and specifications, low cost commercial applications, spectroscopic, instrument windows and general optical substrates to high precision pressure windows for demanding applications. Precision optical flats are stocked with options of multi-layer AR coatings.

For inquiries or to place an order, please reach out to our dedicated sales team.

Buy direct from stock
Get a quote for specific requirements

Option A

  • Material:
  • UV Fused Silica windows Spectrosil 2000 ®
  • Diameter Tolerance:
  • +0.00/-0.20mm Diameters 8mm and below ± 0.10mm
  • Thickness Tolerance:
  • ±0.10mm
  • Edge Finish:
  • Fine ground
  • Surface Quality:
  • 40/20 Scratch/Dig
  • Surface Flatness:
  • 1-2 Fringes (@633nm) per 25mm dia
  • Parallelism:
  • ≤ 3 Arc mins

Option B

  • Material:
  • NA
  • Diameter Tolerance:
  • NA
  • Thickness Tolerance:
  • NA
  • Edge Finish:
  • NA
  • Surface Quality:
  • NA
  • Surface Flatness:
  • NA
  • Parallelism:
  • NA
  • Dimensions:
  • Diameters 3mm to 350mm
    Squares/Rectangles 5mm to 100mm
  • Thickness Range:
  • 0.1mm to 50mm (subject to dimension)
  • Dimension/Thickness:
  • Tol to 0.02mm
  • Edge Finish:
  • Ground or polished
  • Surface Quality:
  • 80/50 to 20/10 scratch/dig
  • Surface Flatness:
  • Up to lambda 10(@633nm)
  • Parallelism:
  • Up to 10 seconds
  • Material Options:
  • Corning HPFS 7980, KrF & ArF grade, commercial grade UV Silica & Heraeus Spectrosil 2000®, Heraeus Suprasil® I,
    2 grade A & B, 311, 312, 3001, 3002
  • Coating Options:
  • AR coatings from 193nm - 2000nm
  • Options:
  • Wedges, shapes, drilled holes, edges polished & bevelled angles

Buy direct from stock…

For discount pricing for stock parts over 10+ and volume/OEM quantities, please request a quote, where you can upload drawings and specifications. You can also add the below items to the quote by selecting 11 or more and clicking add to quote.
View Basket
View Quote

Part No.

  • SPEC100X1.1

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 1.1mm

Quantity

Unit Price (1-10) excl. VAT

£168.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC100X2

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) excl. VAT

£173.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC100X3

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) excl. VAT

£186.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC100X6

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 6mm

Quantity

Unit Price (1-10) excl. VAT

£199.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC100X8

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 8mm

Quantity

Unit Price (1-10) excl. VAT

£218.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC10X1

Description

  • Fused Silica Discs

Diameter

  • 10mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) excl. VAT

£8.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC10X2

Description

  • Fused Silica Discs

Diameter

  • 10mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) excl. VAT

£9.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC10X3

Description

  • Fused Silica Discs

Diameter

  • 10mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) excl. VAT

£9.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12.5X1

Description

  • Fused Silica Discs

Diameter

  • 12.5mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) excl. VAT

£13.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12.5X2

Description

  • Fused Silica Discs

Diameter

  • 12.5mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) excl. VAT

£13.90

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12X1

Description

  • Fused Silica Discs

Diameter

  • 12mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) excl. VAT

£10.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12X2

Description

  • Fused Silica Discs

Diameter

  • 12mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) excl. VAT

£12.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12X3

Description

  • Fused Silica Discs

Diameter

  • 12mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) excl. VAT

£13.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC13X1

Description

  • Fused Silica Discs

Diameter

  • 13mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) excl. VAT

£13.20

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC13X2

Description

  • Fused Silica Discs

Diameter

  • 13mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) excl. VAT

£13.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC150X3

Description

  • Fused Silica Discs

Diameter

  • 150mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) excl. VAT

£240.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF
