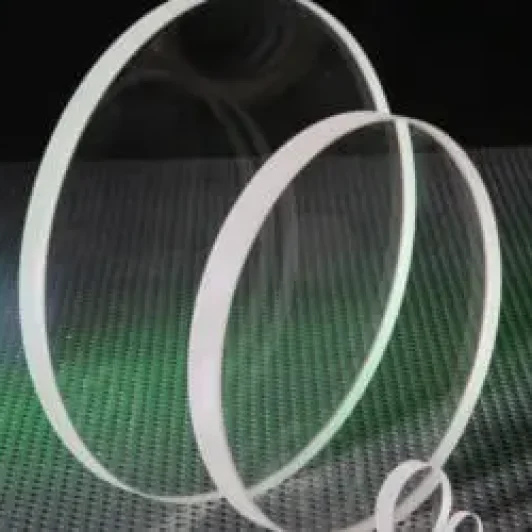

Fused Silica Precision Discs


Newcastle Optics supply precision UV Fused Silica windows and flats. Fused Silica is ideal for precision optical flat windows due to its low co-efficient thermal expansion, low refractive index of refraction and high transmission. Used for laser and precision instrumentation they are custom AR coated for the UV ultraviolet to infrared regions.

Custom optical coatings are provided and AR coatings for laser windows, for the power density of your beam to a precise laser damage threshold specification. The windows can be supplied with interferometer graphs from our metrology department using the latest tri-optics software. Custom optical coatings are provided and AR coatings for laser windows, for the power density of your beam to a precise laser damage threshold specification. The windows can be supplied with interferometer graphs from our metrology department using the latest tri-optics software. Newcastle optics stock two flatness specifications and offers a range of custom options.

For inquiries or to place an order, please reach out to our dedicated sales team.

Buy direct from stock
Get a quote for specific requirements

Option A

  • Material:
  • UV Fused Silica Spectrosil 2000 ®
  • Diameter Tolerance:
  • +0.00/-0.10mm
  • Thickness Tolerance:
  • +0.50/-0.00mm
  • Edge Finish:
  • Fine ground
  • Surface Quality:
  • ≤ 40/20 Scratch/Dig
  • Surface Flatness:
  • Lambda 4 both sides (@633nm)
  • Parallelism:
  • ≤ 30 arc sec

Option B

  • Material:
  • UV Fused Silica Spectrosil 2000 ®
  • Diameter Tolerance:
  • +0.00/-0.10mm
  • Thickness Tolerance:
  • +0.50/-0.00mm
  • Edge Finish:
  • Fine ground
  • Surface Quality:
  • ≤ 40/20 Scratch/Dig
  • Surface Flatness:
  • Lambda 10 both sides (633nm)
  • Parallelism:
  • ≤ 30 arc sec
  • Dimensions:
  • Diameters 5mm to 150mm
  • Thickness Range:
  • Subject to dimension & flatness
  • Dimension/Thickness:
  • N/A
  • Edge Finish:
  • N/A
  • Surface Quality:
  • N/A
  • Surface Flatness:
  • N/A
  • Parallelism:
  • N/A
  • Material Options:
  • N/A
  • Coating Options:
  • AR coatings 193nm to 2000nm
  • Options:
  • Wedges, shapes & bevels

Buy direct from stock…

For discount pricing for stock parts over 10+ and volume/OEM quantities, please request a quote, where you can upload drawings and specifications. You can also add the below items to the quote by selecting 11 or more and clicking add to quote.
View Basket
View Quote

Part No.

  • SPEC-PRECISION10X3

Description

  • Fused Silica Precision Discs

Diameter

  • 10mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) excl. VAT

£27.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC-PRECISION15X3

Description

  • Fused Silica Precision Discs

Diameter

  • 15mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) excl. VAT

£32.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC-PRECISION25X6

Description

  • Fused Silica Precision Discs

Diameter

  • 25mm

Thickness

  • 6mm

Quantity

Unit Price (1-10) excl. VAT

£36.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF
